301 Tilt Down Under Cabinet Mount-DISCONTINUED

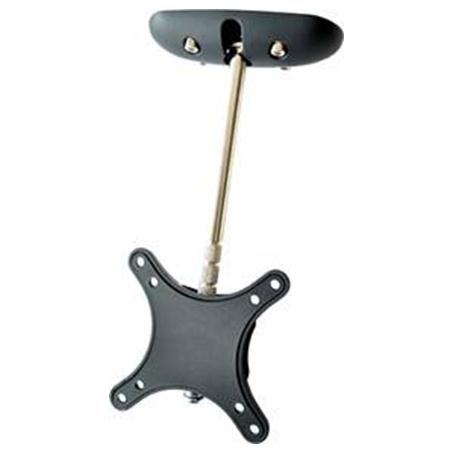

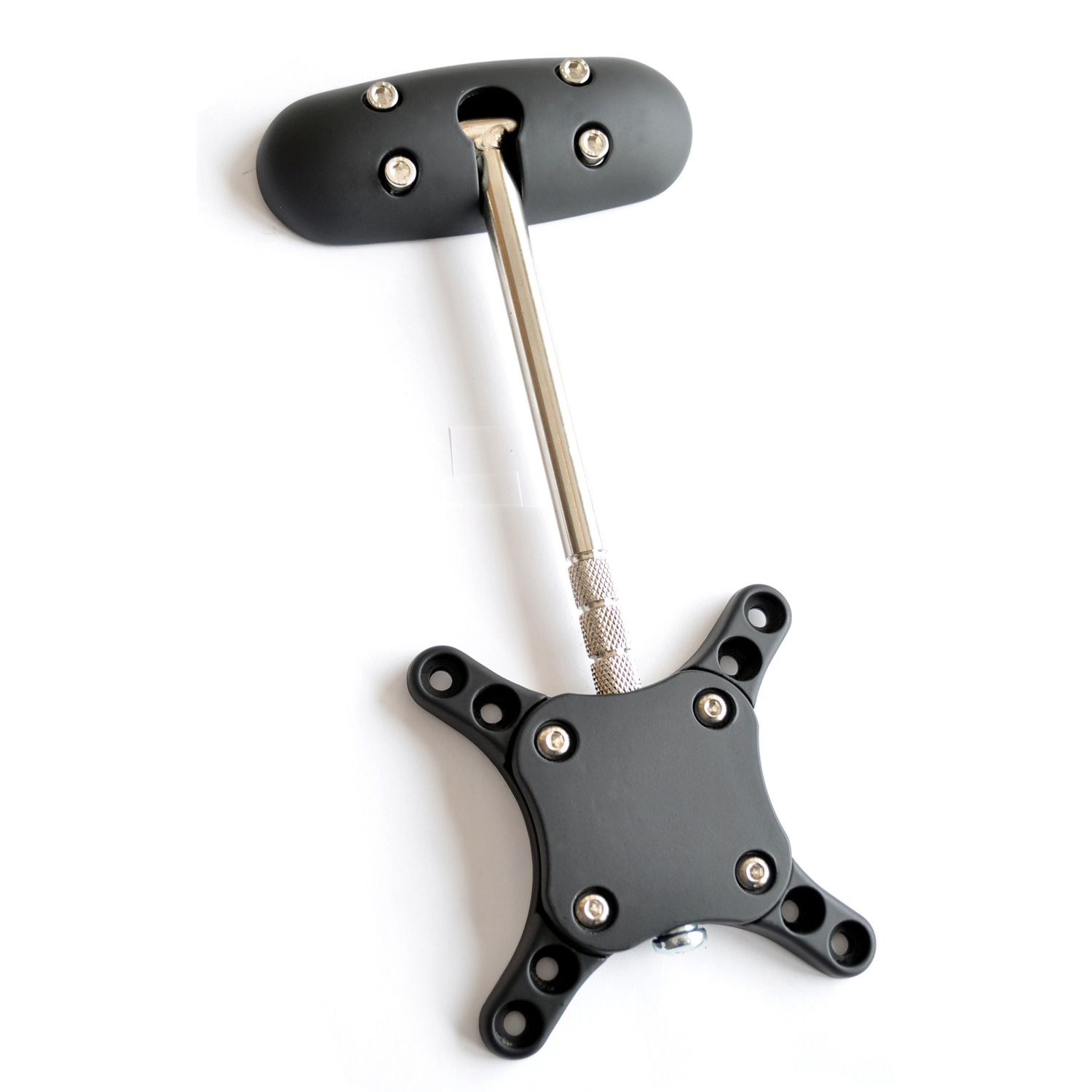

Attractive Retail PackgingIn Use301 Larger Photo with detail
Click to enlarge image(s)
Flip your TV up out of the way when not in use!
We are Sorry, This product is no longer available - Please contact us for other options
The Tilt Down Under Cabinet Mount #301 allows you to mount your small LCD TV or computer monitor under a cabinet, shelf, or even from the ceiling! Perfect for use in the kitchen, office, or RV. This handy little mount flips down at 105� angle and when down, swivels left to right up to 180� for the best viewing angles. Fits screens sized 12" - 20" and weights up to 25 lbs. Flip down rod is adjustable and extends up to 9 inches. It allows your flat panel screen to be flipped up and out of the way when not in use. Made of cast aluminum construction with a powder coated finish. Mounting Hardware + User Manual Included.
TIP: Your TV screen size may be limited by the depth of your cabinet or shelf.

SPECIFICATIONS:
VESA Compatible Mounting Pattern: 75x75mm and 100 x 100mm
Mount Type: Flip Down, Under Cabinet, Swivel and Tilt
Brand: Master Mount

Screen Size: 12" - 20"
Weight Capacity: up to 25 lbs

Viewing Adjustments:
180 degrees left to right
105 degrees up and down
Adjustable Rod extends up to 9" down from bottom of cabinet or shelf

Material: Cast Aluminum Construction with powder coat finish
Color: Black
Assembled Dimensions: H 5.75" x W11" x D 1", 9" when extended
Weight: 2.4 lbs
Specifications
VESA 75x75, 100x100
Screen Size 12-20" (also determined by under-cabinet space)
Weight Limit 25 lbs
Flip down rod extension 9"
Features Benefits
Under Cabinet Mount allows you to flip TV up when not in use
tilts and swivels allows for perfect viewing angles
